Comprehensive roofing project of bus station

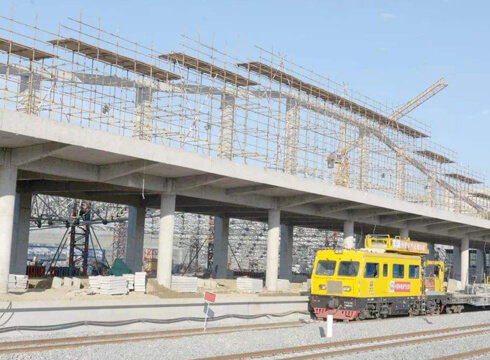

睢宁高铁站详细图03

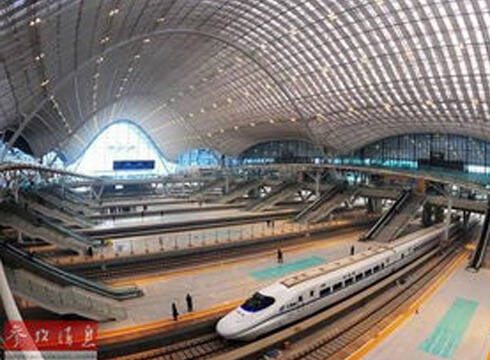

睢宁高铁站详细图02

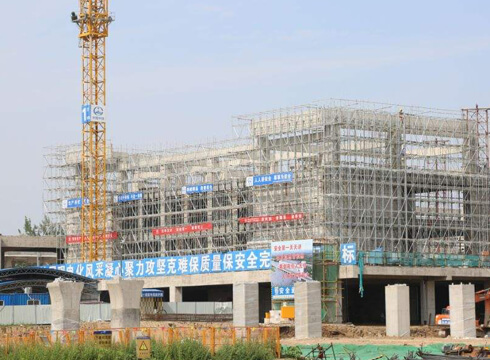

睢宁高铁站详细图01

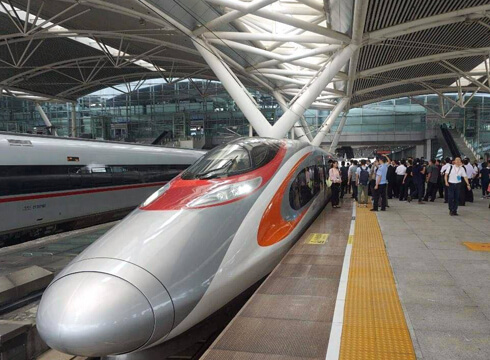

睢宁高铁站详细图04
  • Span 51.6 m
  • Length 114 m
  • Area 5883㎡
  • Height 18 m

Advantage

highway station,steel structure
  • 80% of production can be finished at factory

  • Easy and fast installation

  • Cost-effective

  • High security

  • Roof and side enclosures can be installed on the ground and lifted successfully once

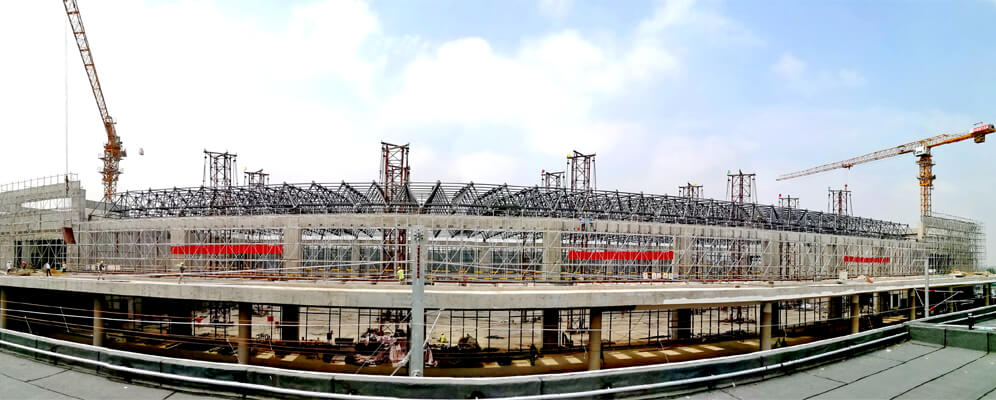

This project used four square quadrangle welding ball node space truss structure, to find all around structure slope plate rack, rack using peripheral bottom chord bearing in elevation is + 12.2 m concrete pillars, rack maximum altitude + 18 m, spatial vector level 2500-4200 – mm, station building second floor elevation + / – 0.00 m, stilt floor elevation of 5.50 m,  Highway station adopted “ground assembling  + around ascending simultaneously support bracket in the whole sealing side” of the construction plan.
