Integrated Circuit Steel Structure Production Plant Project

steel structure
space frame roof
space frame roof
steel structure
  • Area 113,673.7㎡
  • Steel material Q235B, Q355B
  • Usage manufacturing plant

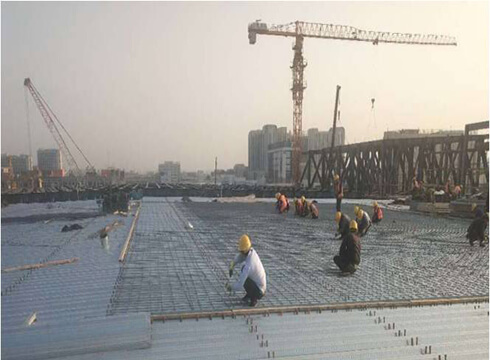

  • Roof Steel sheet+Sandwich sheet
  • Anti-rust treatment galvanization

Advantage

space frame roof
  • 80% of production can be finished at factory

  • Easy and fast installation

  • Cost-effective

  • High security

  • Roof and side enclosures can be installed on the ground and lifted successfully once

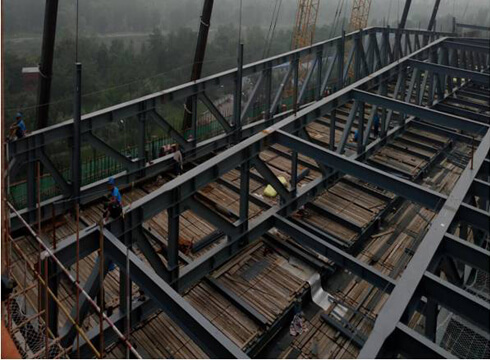

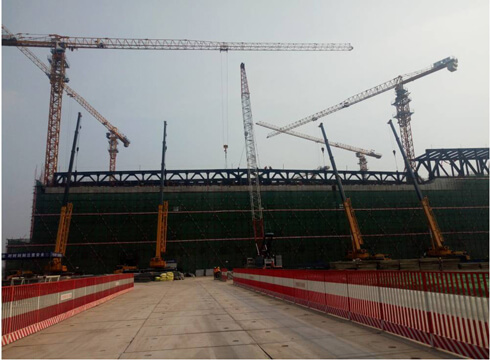

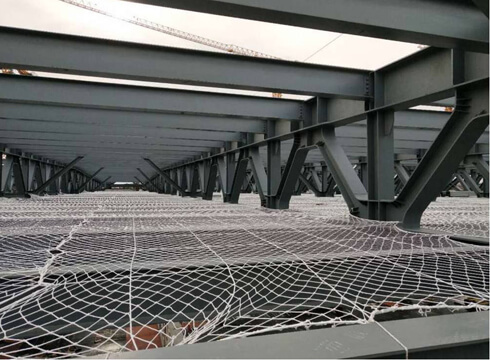

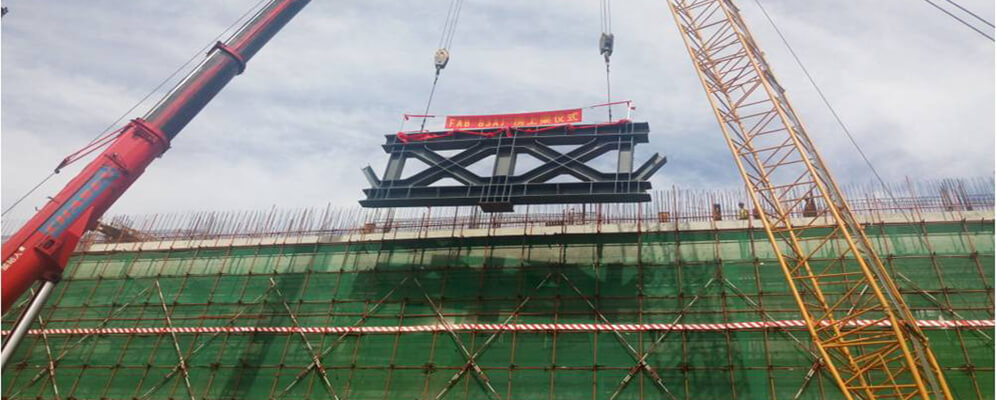

Our company is responsible for the B3 plant A-X axis intersection 1-43 axis, which is steel truss roof system covering an area of about 20000㎡,  the maximum span of the truss structure is 48.6 m, the total weight of the roof structure is about 3700t in 20 pieces, and a single weight of each truss is about 100t.
