Wanda Dongfang Yingdu Steel Structure Project

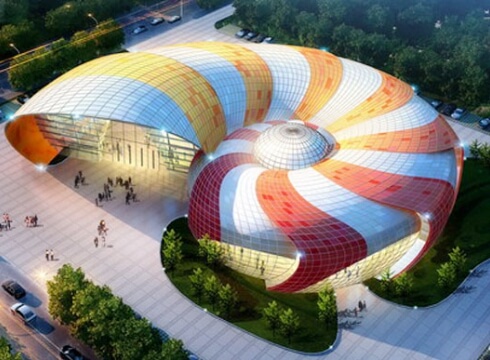

Steel Structure Project cases3

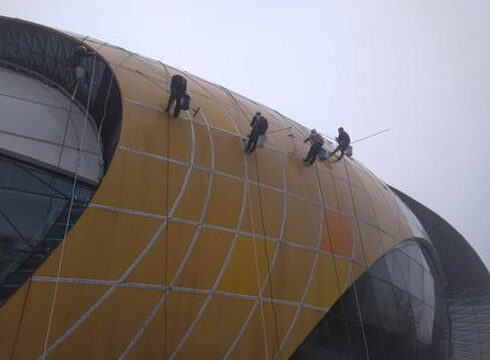

Qingdao Wanda Oriental Movie Metropolis Detailed Map 03

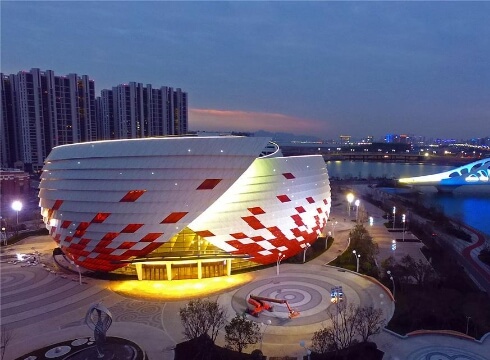

Steel Structure Project cases2

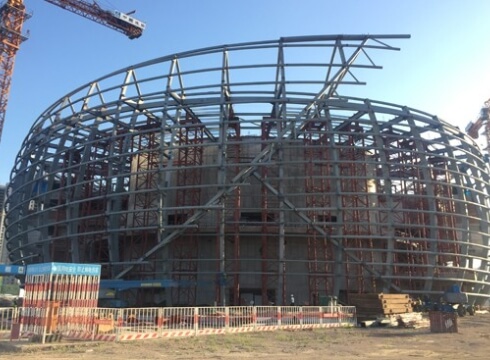

Steel Structure Project cases1
  • Span 55 m
  • Warranty 50 years
  • Roof color steel
  • Wind load 0.45 KN/㎡
  • Seismic acceleration 0.1g

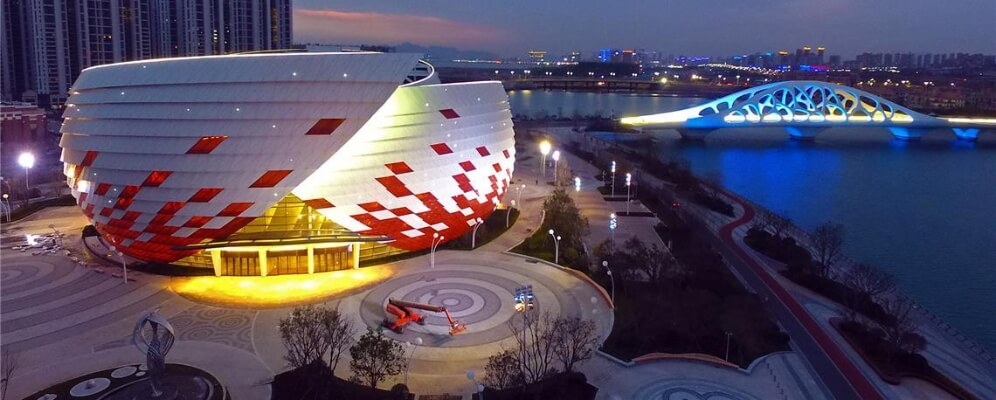

Steel Structure Project cases4
  • 80% of production can be finished at factory

  • Easy and fast installation

  • Cost-effective

  • High security

  • Roof and side enclosures can be installed on the ground and lifted successfully once

The total construction area of the theme park is about 21,000 square meters. It is a single-story large-span and large-space building with a height of about 30 meters, a length of 135 meters, and a width of 126 meters. The roof adopts a “fish-belly” bidirectional space triangular steel truss structure system, with a maximum main span of 67 meters.

The smooth lifting of the roof steel truss indicates that  Oriental Cinema Wanda MAO Cultural Tourism has entered the steel structure construction stage, which has won a lot of precious time for the subsequent installation, debugging and DBV packaging construction of indoor recreation equipment.
