space frame structure Coach station project

space frame structure
space frame structure
High-speed railway station train station design 6
High-speed railway station train station design 7
  • Span 40.8 m
  • Length 85 m
  • Area 3,468 ㎡

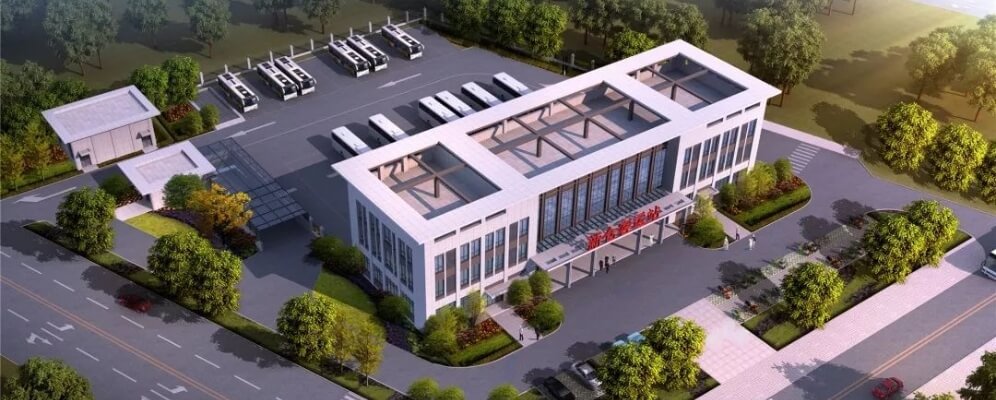

Space frame structure station project
  • 80% of production can be finished at factory

  • Easy and fast installation

  • Cost-effective

  • High security

  • Roof and side enclosures can be installed on the ground and lifted successfully once

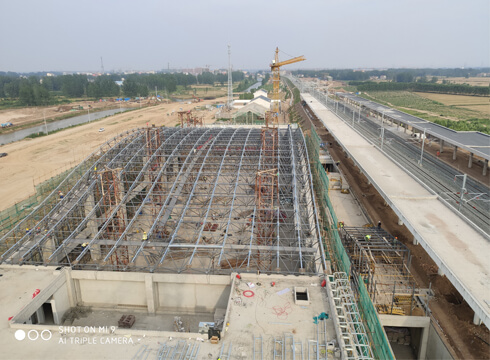

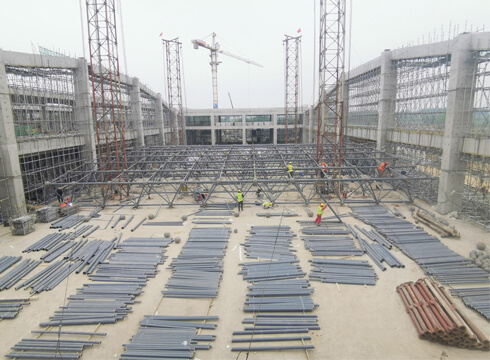

This project adopted square quadrangle space frame structure that is single curve  with welded bolt ball node. The lower chord of the peripheral column points is adopted to support the elevation of + 9.80m-14.771m concrete column top, and the maximum height of the grid is +18.464m. The construction scheme of “ground assembly + supporting frame is adopted to promote the whole structure in step by step + surrounding sealing” is adopted.
