Automobile manufacturing workshop Space Frame Project

space frame structure
space frame structure

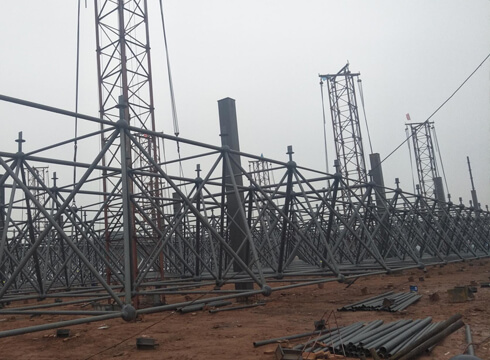

江西亿维详细图02

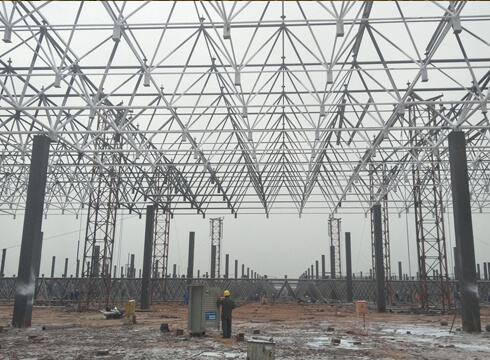

江西亿维详细图01
  • Area of unit 1: 17640㎡
  • Area of unit 2: 15435㎡
  • Area of unit 3: 9261㎡
  • Area of unit 4: 9261㎡
  • Area of unit 5: 18522㎡
  • Area of canopy: 7166.7㎡

Advantage

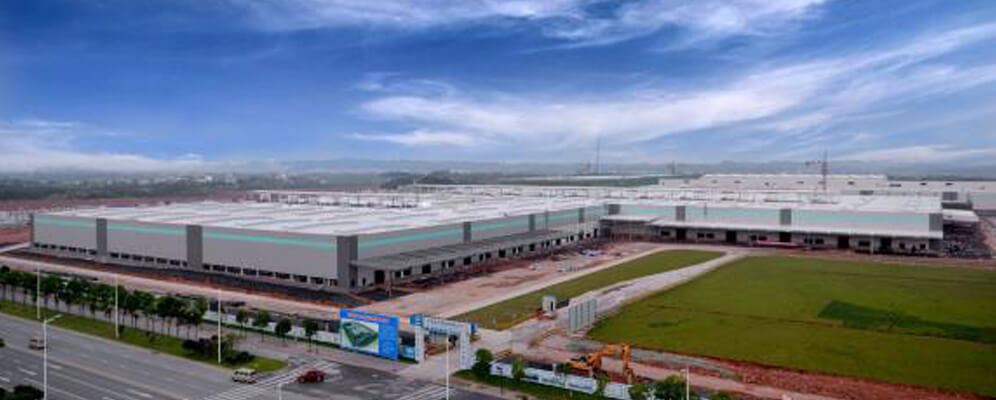

江西亿维优势图
  • 80% of production can be finished at factory

  • Easy and fast installation

  • Cost-effective

  • High security

  • Roof and side enclosures can be installed on the ground and lifted successfully once

Space frame type: this project is designed in the rectangular square pyramid space frame structure,with bolt ball joints and welding ball joints.

Support form: bottom chord multi-supporting.

The General Assembly workshop is divided into five units.Among them, the unit 3 space frame type is bolt ball joint space frame.
