Comprehensive Solid Waste Utilization Project Steel Space Frame Structure Barrel Storage Project

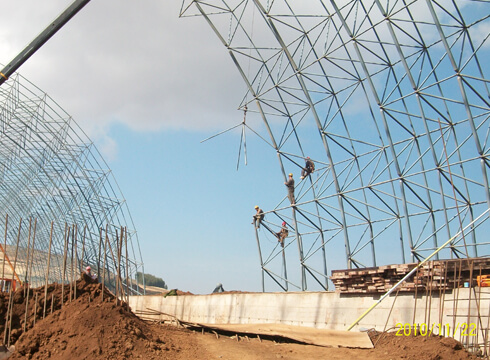

山西国金电力有限公司固废综合利用项目钢网架工程详细图01

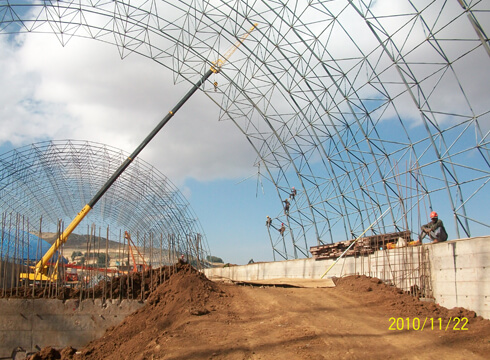

山西国金电力有限公司固废综合利用项目钢网架工程详细图02

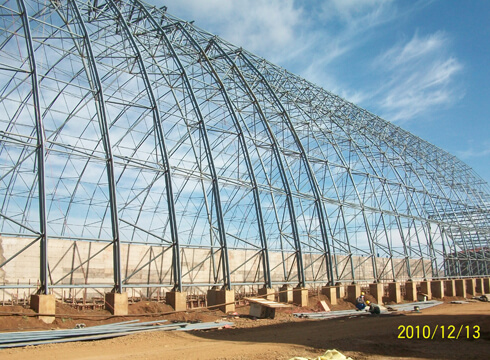

山西国金电力有限公司固废综合利用项目钢网架工程详细图04

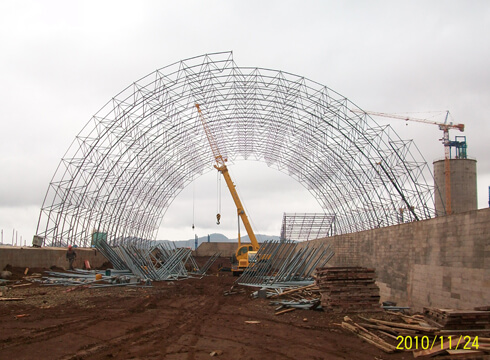

山西国金电力有限公司固废综合利用项目钢网架工程详细图03
  • Raw coal pre - homogenized storage yard: 270*48*19.963 m
  • Gypsum, mixed material pile shed: 150*42*1.8 m
  • Limestone prehomogenized yard: 505*57*26.6 m
  • Auxiliary raw material prehomogenizing yard: 270*49.4*25.7 m
  • Clinker storage cone mesh rack: 17m (height)

Advantage

steel structure contractor
  • 80% of production can be finished at factory

  • Easy and fast installation

  • Cost-effective

  • High security

  • Roof and side enclosures can be installed on the ground and lifted successfully once

The project includes 5 projects: the barrel-shaped space frame storage of the raw coal pre-homogenization field, the length is 270m, the span is 48m, and the height of the space frame is 19.963m; the gypsum and mixed material storage shed is a flat space frame with a length of 150m. The span is 42m, and the vector height of the space frame is 1.8m; the barrel space frame storage of the limestone pre-homogenization field is 505m long, 57m span and 26.6m space frame height; the barrel space frame for auxiliary raw materials stores materials pre-homogenized piles The length is 270m, the span is 49.4m, the height of the space frame is 25.7m; the conical space frame storage of clinker has a diameter of 60-15m, the height of the space frame is 17m, and the thickness of the space frame is 2m.
