Limestone Shed Gable Steel Space Frame Project

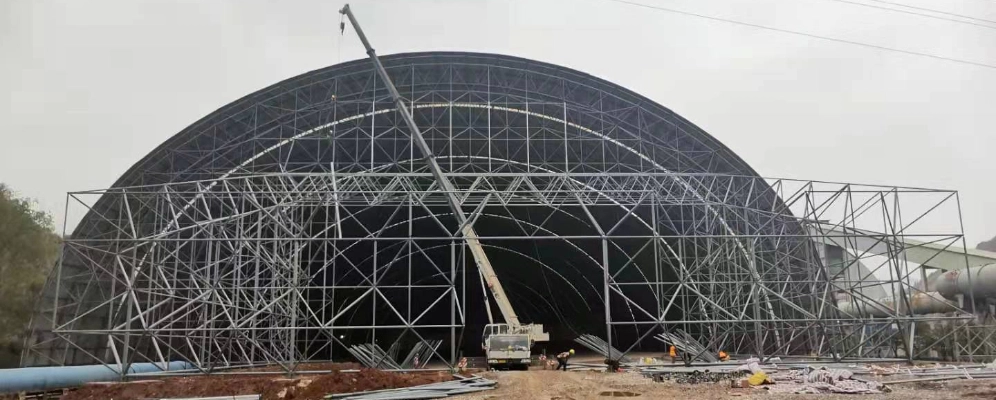

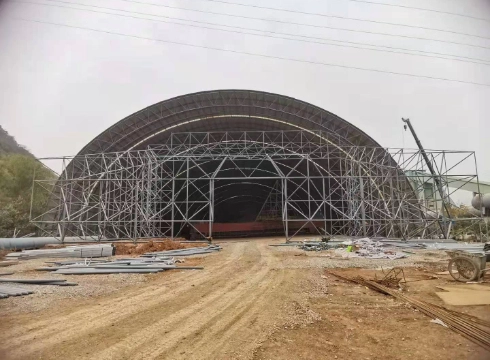

Limestone Stack Shed Gable Project High Altitude Bulk Cone

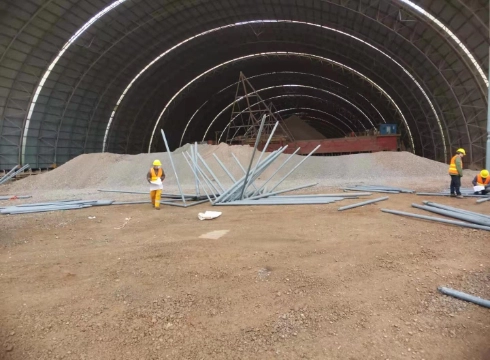

Limestone pile shed gable project - ground assembled cone unit

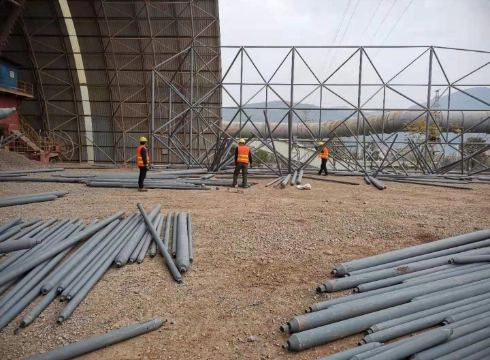

Limestone pile shed gable project - start cross space frame installation

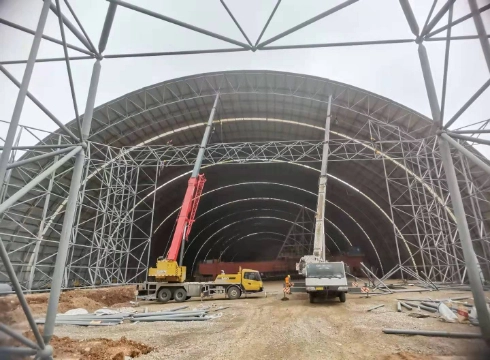

Limestone shed gable project - door frame beam hoisting
  • Product Name: Limestone shed gable space frame project
  • Application: Large Span Bulk Storage Bunker
  • Structure Type: steel space frame structure
  • More Services: Customized according to customer requirements


Limestone Stack Shed Gable Project-High Altitude Bulk Cone
  • 80% of production can be finished at factory

  • Easy and fast installation

  • Cost-effective

  • High security

  • More than 10 years of experience in design and installation of long span roof

Engineering related information

The structural form of the steel structure of this project is a square pyramid space frame structure with bolted ball node, and the support form is: bottom chord node column point support. The building height is 32.6-12m, the span is 34m, the longitudinal length is 36m, and the total projected area is 4250m². The service life of the space frame is 50 years, and the structural safety level is Level 2.

The space frame steel pipe adopts high frequency welded pipe or seamless steel pipe, the material is Q235B, and the space frame bolt ball is made of 45# steel.
