Steel Structure
home Application Bulk Storage

coal storage fully enclosed steel space frame project

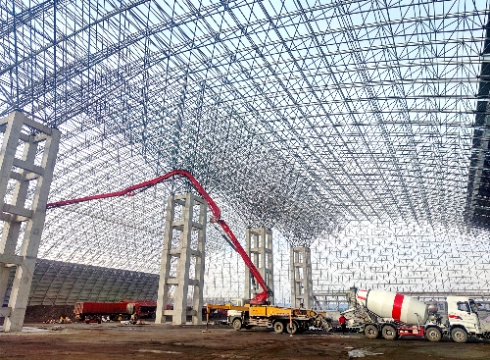

Steel structure closed coal bunker

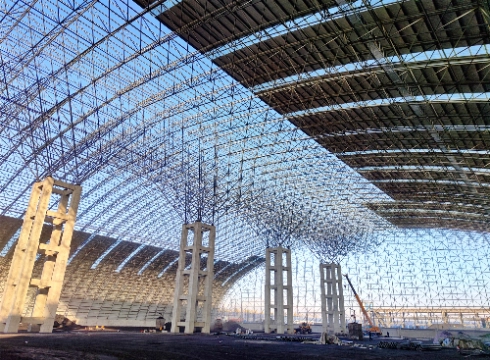

Space frame closed coal bunker

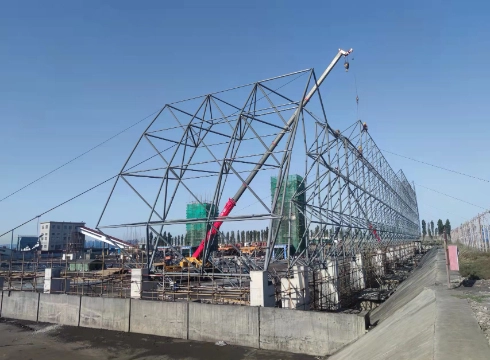

Space frame enclosed coal shed

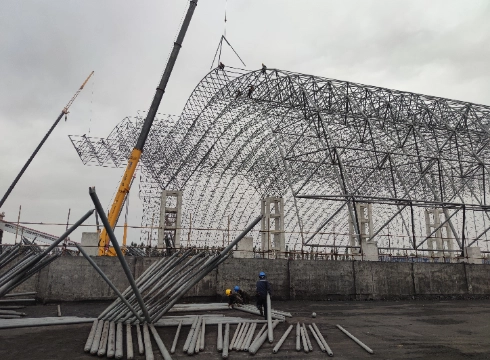

Steel structure closed coal shed
  • Product Name: Xinjiang Jinhui Zhaofeng Coal Industry Co., Ltd. coal storage(raw coal storage)
  • Application: Long Span Bulk Storage Bunker
  • Structure Type: steel structure space frame
  • More Services: Customized according to customer requirements

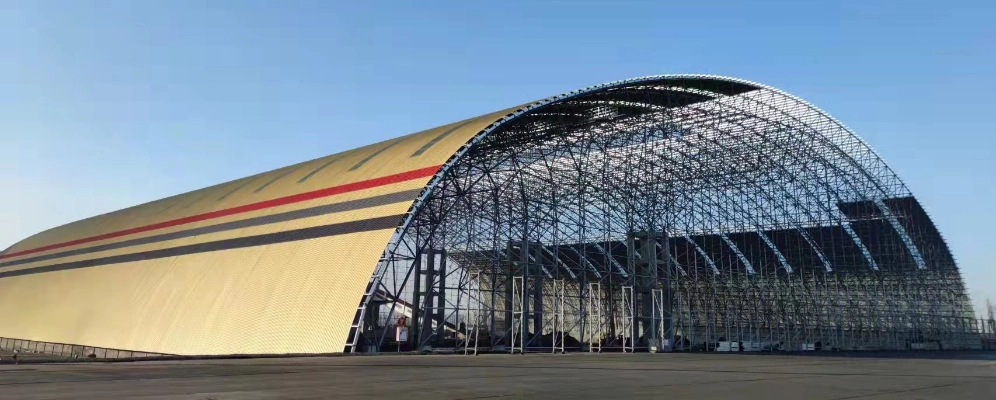

Coal yard environmental protection fully enclosed engineering
  • 80% of production can be finished at factory

  • Easy and fast installation

  • Cost-effective

  • High security

  • More than 10 years of experience in design and installation of large-span roof

Project Introduction

They are Zone A of the Raw Coal Storage and Zone B of the Raw Coal Storage.The projection area of the grid is 52988 square meters.

The enclosed size of area A of the raw coal storage is 168.588m (east-west direction) × 157.4m (south-north direction).

The enclosed size of area B of the raw coal storage is 168.588m (east-west direction) × 156.9m (south-north direction).

Project key & difficult points

  1. There is a lot of coal at the construction site, and the construction process must ensure normal production;
  2. The forms of steel space frame are diverse, the space frame are difficult to get started, the installation height is high, and the amount of steel used is large;
  3. The process is complicated and the engineering quantity is large;
  4. There are many high-altitude operations on site construction, heavy lifting workload, and more cross operations;
  5. Cross the busy farming season during the construction period;
  6. Underground pipelines are more complicated;
  7. For construction across the winter and rainy seasons, safety production in seasonal construction shall be ensured.
