Cameroon clinker shed space frame dome structure

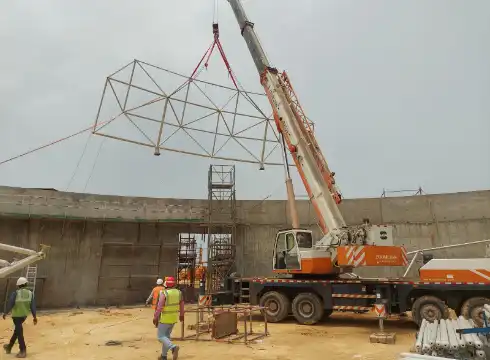

steel structure clinker shed

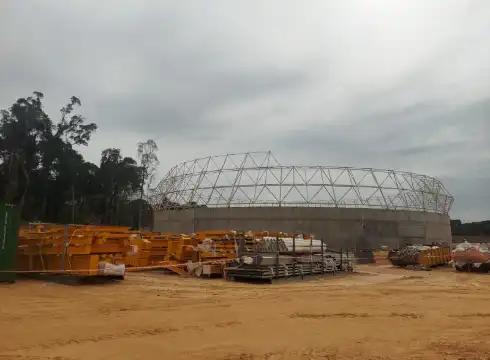

space frame clinker shed

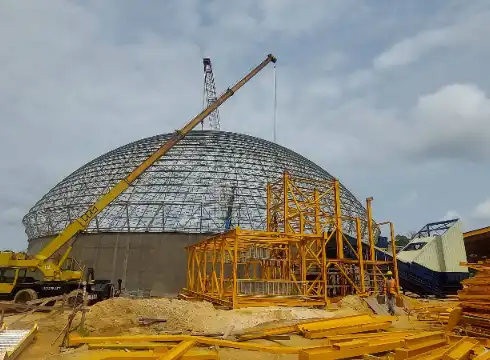

steel space frame clinker shed

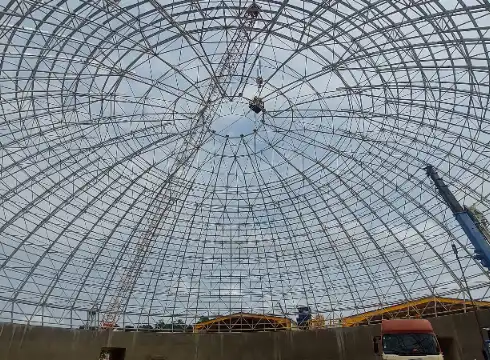

steel structure space frame clinker shed
  • Span: 65.895m
  • High: 32.95m
  • Structure: space frame
  • Node Type: Bolt Ball
  • Material Standard: GB

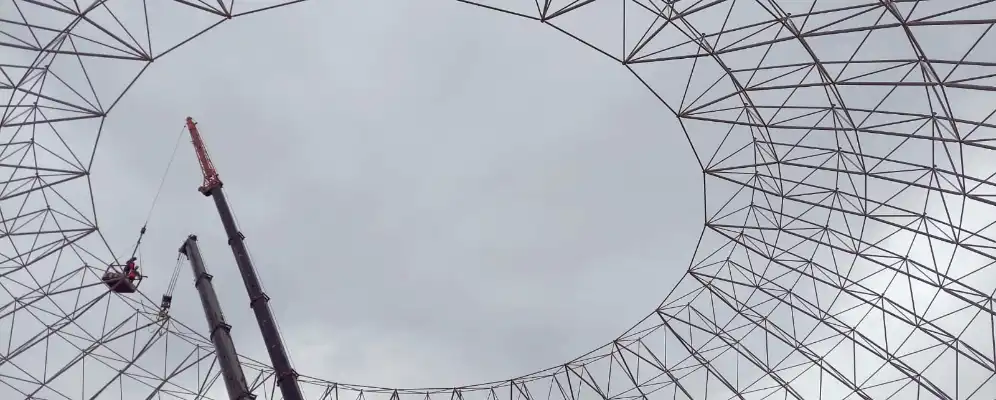

large span clinker shed dome
  • 80% of production can be finished at factory

  • Easy and fast installation

  • Cost-effective

  • High security

  • Roof and side enclosures can be installed on the ground and lifted successfully once

Project Overview

The design service life of the main structural components of this project is 50 years, and the safety level of the building structure is Class II. The structure adopts space grid structure and adopts lower chord point support. The winding and sides are maintained by color steel plates.

The continuous development of cement production technology requires a higher storage capacity of the clinker silo, which leads to a larger diameter and higher height of the clinker body, and also makes the construction of the clinker silo roof structure more difficult. The characteristics of the space frame structure, such as light weight, high rigidity, clear structural force, and relatively easy production and installation, meet the requirements of the clinker storehouse’s use function, structural safety and construction difficulties.
