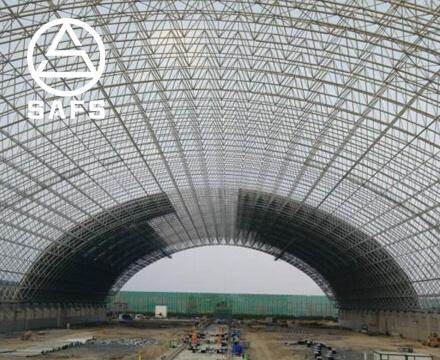

Gypsum Storage Shed

Product description

In cement plant, Gypsum storage shed is an economical, fast and environmental-friendly storage solution, which id very effective for prevention and control of fugitive emission.

Technical Advantage

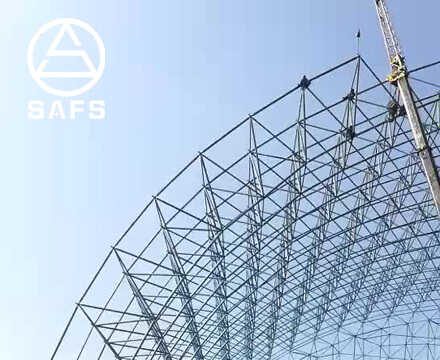

  • Long span. Steel space frame structure roofing storage shed, having span of up to 150 m & height of up to 40 m. The length and span of the storage shed could be adopted depending on the quantity of storage required.
  • Protect raw material from extreme weather conditions. Gypsum storage shed, engineered by SAFS is the best choice to cover stockpile for the most challenging environment.
  • In cement plant, Gypsum storage shed is very effective for prevention and control of fugitive emission.
  • Prevention from vulnerability caused by adverse environmental conditions
  • In case of future expansion the length of the shed can be increased freely.

Technical Specification

Application  Storing gypsum material for cement plant
Dimension The largest span of space frame structures can exceed to 150m, length is customized.
Design Standard AISC ASCE BS EURO JIS UBC NSCP, or Customized
Material Q235B Q355B ASTM A36  ASTM Gr.50
Surface treatment Customized anti-corrosive surface paint and galvanized
Service life 50 years
Certificate CE ISO BV SGS
Cladding system FRP, Polycarbonate panels, Steel sheets, Aluminum panels

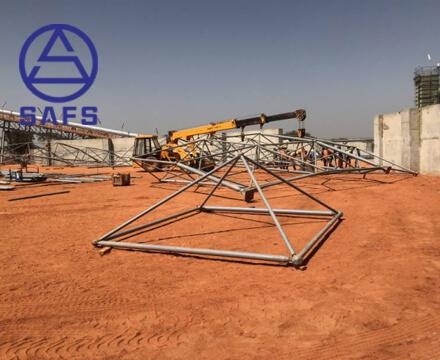

Erection Site engineer supervision or EPC contracted
Warranty 1 year
Service SAFS 7*24H online service whole time
