Dome Coal Stock Yard

Product description

Cost-effective solution to protect dry bulk materials
Save land area with large storage capacity
Space frame is the three dimensional framework that makes the dome structure more stable than traditional structures.

Technical Advantages

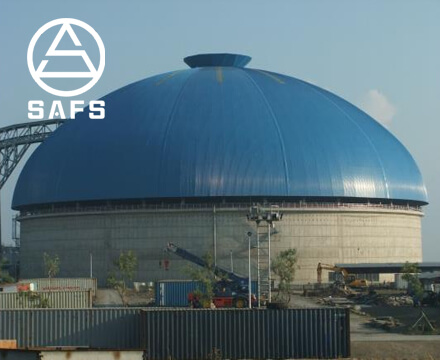

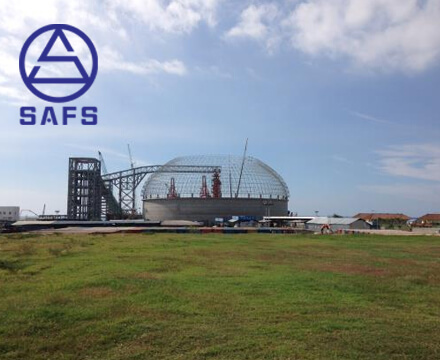

  • In this type of dome structure, the shape of the storage shed will be in the semi hemispherical form.

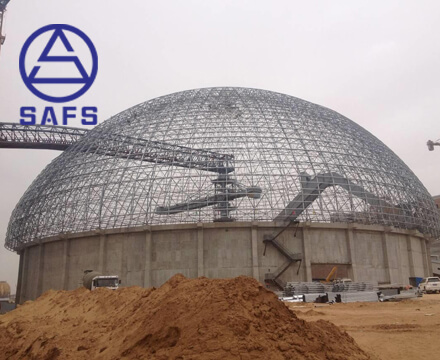

  • There will be a concrete wall up to a certain height from the ground level and the space frame dome structure will be erected above this wall.
  • The dome structure of various sizes could be adopted depending on the quantity of storage required.
  • A circular stacker and scraper type reclaimer could be used for reclaiming the coal or other bulk materials.
  • With this type of storage shed, bulk material will protected from wind and rain and hence the problems associated with these will be avoided.
  • This kind of dome storage shed can accommodate higher quantity of bulk material in a smaller area as the height of storage could be increased.

Application  Storing bulk dry material for cement plant, power plant
Dimension The largest span of space frame dome structures can exceed to 120m, and the height can be customized accordingly.
Design Standard AISC ASCE BS EURO JIS UBC NSCP, or Customized
Material Q235B Q355B ASTM A36  ASTM Gr.50
Surface treatment Customized anti-corrosive surface paint and galvanized
Service life 50 years
Certificate CE ISO BV SGS
Cladding system FRP, Polycarbonate panels, Steel sheets, Aluminum panels
Erection Site engineer supervision or EPC contracted
Warranty 1 year
Service SAFS 7*24H online service whole time
