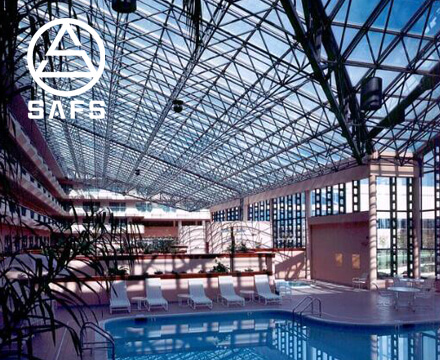

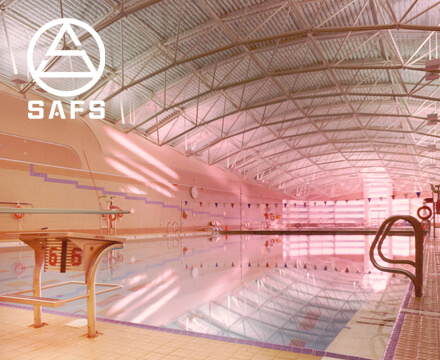

Swimming Pool Roof Cover

Product description

A space frame is a structure system assembled of linear elements so arranged that forces are transferred in a three-dimensional manner. Space frame frequently provides the right answer and satisfy the requirements for lightness, economy and speedy construction.

Technical Advantages

  • Lightness in weight is the most advantageous feature of space frame which is especially useful in case of long span roofs.
  • The building efficiency of space frame is higher as they built in simple prefabricated units of standard size and shape and can be easily transported and assembled rapidly by skilled manpower.
  • In spite of being light in weight, a space frame is sufficiently stiff. The three-dimensional property of the space frame and full participation of the constituent element gives it the required rigidity.
  • Exceptional ability to resist heavily concentrated and unsymmetrical load.
  • Increased flexibility in layout and positioning of columns.
  • They possess a versatility of shape. They can utilize a standard module to generate flat space grids, lattices or even free form shapes.
  • The simplicity of lines in space frames is very possible

Technical Specifications

Application  Safety roof cover for swimming centers
Dimension The largest span of space frame structures can exceed 100m.
Design Standard AISC ASCE BS EURO JIS UBC NSCP, or Customized
Material Q235B Q355B ASTM A36  ASTM Gr.50
Surface treatment Customized anti-corrosive surface paint and galvanized
Service life 50 years
Certificate CE ISO BV SGS
Cladding system FRP, Polycarbonate panels, tempered glass

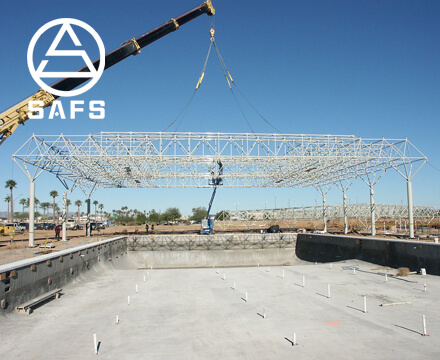

Erection Site engineer supervision or EPC contracted
Warranty 1 year
Service SAFS 7*24H online service whole time
