Stadium Steel Structure Roof Project

Stadium Steel Structure Roof

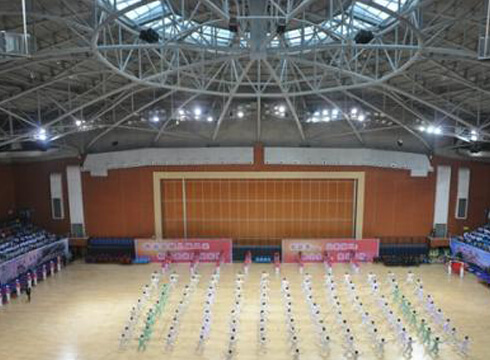

安徽省桐城市体育馆详细图01

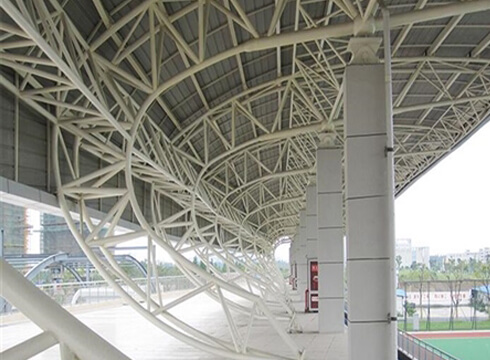

安徽省桐城市体育馆详细图02
Stadium Steel Structure Roof
  • Location Tongcheng, Anhui
  • Area 13,775㎡
  • Life span 50 years
  • Total time 6 mouths
  • Steel material Q235B, Q345B

Advantage

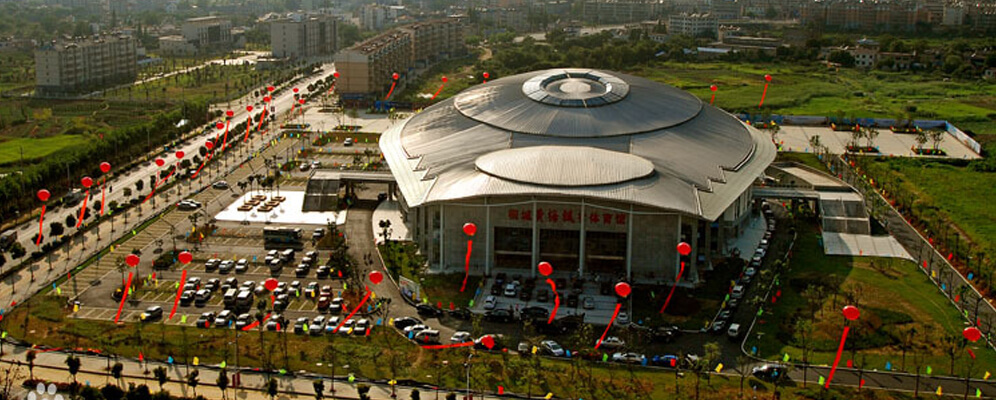

安徽省桐城市体育馆优势图
  • 80% of production can be finished at factory

  • Easy and fast installation

  • Cost-effective

  • High security

  • Roof and side enclosures can be installed on the ground and lifted successfully once

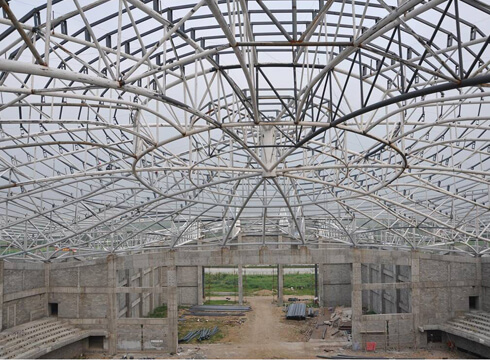

The main structure of the pavilion consists of frame, steel truss and metal roof board. There are three floors in total. The first floor is for competition and training, and the second and third floors are for spectators.
