Shanghai National Convention and Exhibition Center Project

Space Frame Case Convention and Exhibition Center Project 0
exhibition hall
exhibition hall

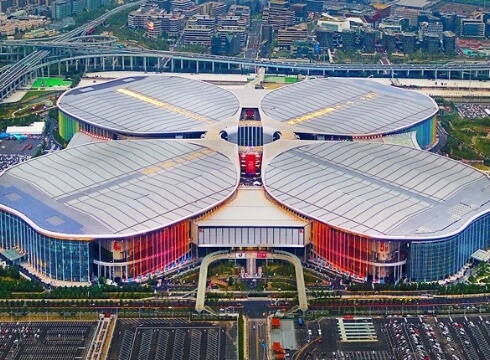

steel structure exhibition hall roof1
  • Area 1.47 million ㎡
  • Height 43m
  • Span 108m
  • Dimension of hall 270*338 m

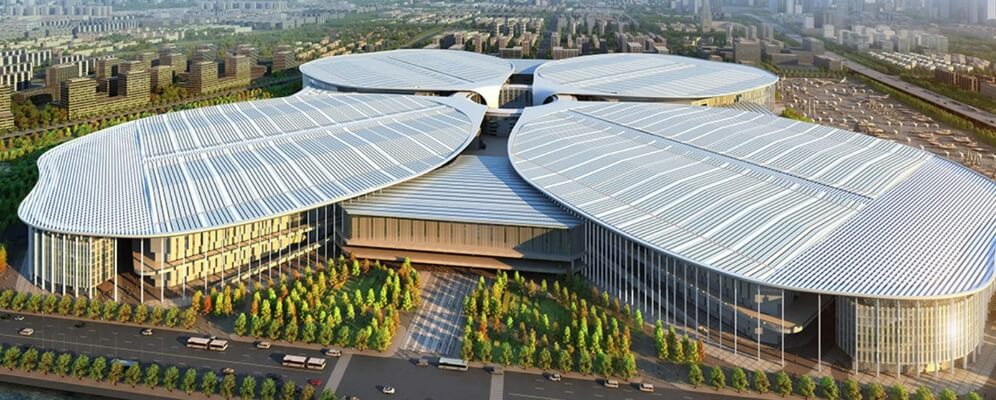

steel structure exhibition hall roof0
  • 80% of production can be finished at factory

  • Easy and fast installation

  • Cost-effective

  • High security

  • Roof and side enclosures can be installed on the ground and lifted successfully once

The total construction area of this project is 1,470,000M2, the building height is 43m. This project is divided into 17 units, include A0, A1, B0, B1, D1, E1, E2A, E2B, E2C, E2D, F1, F3, C0, C1, D0, F2, G area.Our company is responsible for the pipe truss project in Area C1. The exhibition hall is 270m wide and 338m long. The roof is a multi-span continuous triangular space pipe truss structure with an area of about 100,000 square meters.The walking tower crane is used to lift the blocks and connect them at high altitude.

The maximum span is 108m.
